Enhanced Radiation Protection Device

The EggNest® radiation protection system

One integrated system that protects everyone in the room, in every case: above and below the table, and at the head of the table, where scatter is highest.13

See a virtual demonstration Talk to our team
Operator estimated annual collar dose
25.5 mrem
dose measured over the apron with EggNest Complete, in real-world procedures: total effective doses were <1% of the annual maximum20
Scatter reduction
Up to >99%
demonstrated in published clinical studies for staff standing behind the Complete Shield1
Coverage
360°
A modular system comprised of integrated table-mounted and ceiling-mounted shields that provide 360° of protection around the patient while allowing for easy patient loading and access.
Construction
None
the base replaces the table mattress and the Complete Flex hangs from your existing ceiling boom: no structural changes, no permitting, and the lab stays in service

EggNest Complete: One integrated system for all staff in all cases

What’s included:

  • EggNest Protect 2.0 base
  • Complete Flex hanging shield
  • Real-time dosimetry system with four badges
  • Four sets of ultralight lead aprons

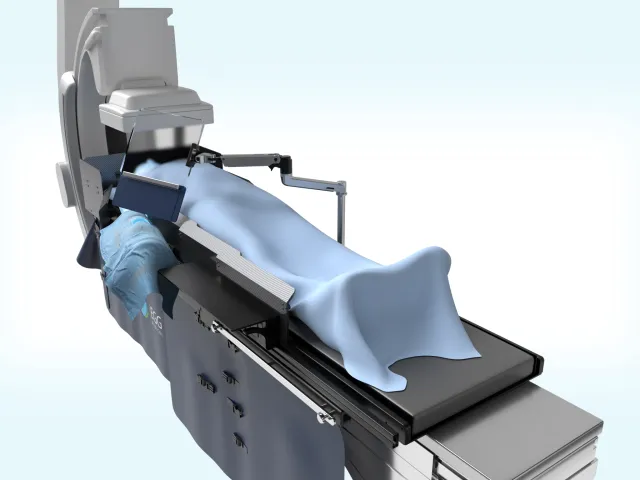

Render of EggNest Protect 2.0 on a procedure table: shields along the table rails and a shielded skirt to the floor

EggNest Protect 2.0 Base System

  • Installs on procedure table
  • 360-degree protection above and below the table
  • Integrated head of table protection with no added trip hazards or clutter
  • No workflow impact
  • Easy patient loading and access
  • Shielding moves passively with the c-arm without obstructing movement

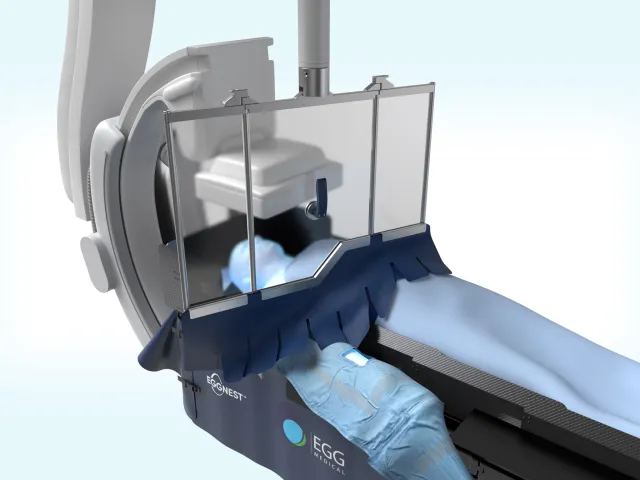

Render of the Complete Flex hanging shield hanging from a ceiling boom over an EggNest table, its clear panels and flaps meeting the table shields

Complete Flex Hanging Shield

  • Adds above table protection, providing up to >99% reduction for those behind the shield1
  • Hangs from current ceiling boom without additional construction
  • Installs in under 45 minutes, meaning no lab downtime

Real-time Dosimetry

  • Provides real-time feedback during cases
  • Essential if choosing to remove lead aprons

Ultralight 0.125 Pb Aprons

The whole room, the head of the table included.

Scatter exposure is highest at the head of the table. In a phantom study, the Echo, Anesthesia and implanting EP positions averaged 4x the scatter dose of the Operator.13

Head of the table

Echo, Anesthesia and EP

EggNest has 360-degree shielding. A hanging head shield buckles to the side shields to keep the shielding continuous around the head of the table, and head flip shields raise into place for staff at either side of the patient's head.

  • 96% lower scatter than standard shielding at the echo or EP implanter position14
  • 85% lower at the anesthesia position14
  • Clear Spot Shield included for the head of the table protection
Floor and ceiling

No clutter or trip hazards

Every part of EggNest mounts to the procedure table, its rail, or the ceiling boom your lab already has. There are no carts to roll in, lock or step around, and the floor around the table stays clear for the team.

  • The base replaces the table's own mattress
  • The table skirt takes the place of any skirt already on the table rail
  • The Complete Flex attaches to the boom's support tube, in place of your hanging shield

Virtual demonstration

See EggNest in the lab.

Three interactive views of the system. Pick the one that answers your question.

  • Step by step

    Interactive setup

    Set up EggNest for a case the way our team demonstrates it, starting at the head of the table. Radial and femoral setups.

    Open the interactive setup
  • Part by part

    Product overview

    Every part of the system on one 3D model. Select a part to see what it does and what it is made of.

    Open the product overview
  • Team by team

    Procedure setups

    Where each member of the team stands, and how the system protects them, in coronary, structural heart, EP, IR and vascular cases.

    Open the procedure setups

Built for a laptop or iPad. Each view is a large download, so it loads only when you start it.

Accessories

  • ScatterPro™

    Disposable drape

    A sterile, single-use, lead-free drape at 0.25 mm Pb equivalence, placed around the access site with adhesive strips. The flap folds over the hand for radial access.

    Order ScatterPro Learn more

  • ScatterScoop™

    New
    Reusable arm support

    A molded carbon fiber arm support with 0.5 mm Pb shielding built in, used like any jam-board style scoop on the patient's right or left.

    Order ScatterScoop Learn more

Specialties

In every case.

One system that works across multiple specialties, so a hospital can standardize protection across all labs.

  • Interventional cardiology
  • Electrophysiology
  • Structural heart
  • Interventional radiology
  • Vascular surgery
  • Hybrid rooms
See the procedure setups

Not sure which configuration your lab needs?

Tell us about your room and your case mix, and we will show you what whole-room protection looks like in it.

Talk to our team

Or go straight to product ordering.

Questions we get asked

Questions about EggNest.

What does installation involve?

For EggNest Protect, the table's own mattress comes off, the table is cleaned, and the base platform goes on in its place (manual 4511rC, pp19 to 25). For EggNest Complete, an adapter bolts to the support tube of your existing ceiling-mounted boom, and the Complete Flex hangs from it in place of your current shield (manual 4344rC, pp8 to 9). No construction, no permitting and no lab downtime.

What does EggNest add to the patient table, and which tables does it fit?

The EggNest Protect base replaces the table's own mattress: a carbon fiber platform built to be radiolucent, a low-attenuation mattress on top, and rails for the shields around it. Tell us what system you have and we will confirm the fit.

What sits on the floor?

Nothing. Every part of EggNest mounts to the procedure table, its rail, or for EggNest Complete the ceiling boom your lab already has. The base replaces the table mattress, the table skirt hangs from the table rail, the Clear Spot shield rides on a rail on the patient's left, and the Complete Flex attaches to the boom's support tube (manual 4511rC, pp8 to 17; manual 4344rC, p8). There are no carts to roll in, lock or step around.

Does the head of the table need a separate shield?

No. EggNest carries its own. A hanging head shield buckles to the side shields so the shielding runs continuously around the head of the table, and head flip shields raise into place for staff at either side of the patient's head (manual 4511rC, pp11 and 15). In a phantom study against standard shielding, scatter was 96% lower at the echo or EP implanter position and 85% lower at the anesthesia position.14 The consensus statement describes EggNest as shielding everyone around the procedural table: operators, assistants and other laboratory staff.3

Does it work for every procedure?

EggNest is used across interventional cardiology, structural heart, electrophysiology, interventional radiology and vascular surgery, with a procedure-specific setup for each: femoral and radial access, device implantation and ablation, aortic and lower-extremity work. It fits the existing workflow without changing how the room runs.

What comes with EggNest Complete?

The Protect base system and the Complete hanging shield, a real-time dosimetry system with four badges, four sets of 0.125 mm ultralight aprons with hospital programs, and expert installation with one to two weeks of on-site support.

References
  1. Riley RF, Kidd S, Power J, Stegman B, Dahle TG. Comparative effectiveness of 2 next-generation scatter radiation shielding systems. J Soc Cardiovasc Angiogr Interv. 2025;4(8):103786. doi:10.1016/j.jscai.2025.103786.
  2. Rizik DG, Sutton NR, Lansky AJ, Alasnag M, et al. SCAI/ASE/HRS/SIR/SVS expert consensus statement on enhanced radiation protection: time for mandatory and urgent action. J Soc Cardiovasc Angiogr Interv. 2026;5(8):105455. doi:10.1016/j.jscai.2026.105455.
  3. Wilson RF, Steege P, Tao A, Gomez-Cardona D, Gainor JP, Riley RF, Kamen J. Phantom-based evaluation of scatter radiation at clinically relevant positions in fluoroscopy-guided cardiac procedures. J Soc Cardiovasc Angiogr Interv. 2025. doi:10.1016/j.jscai.2025.103936.
  4. Riley RF, Kamen J, Tao A, Gomez-Cardona D. Comparative effectiveness of the EggNest Complete shielding system to standard shielding in the cath lab. Am Heart J Plus. 2025;54:100543. doi:10.1016/j.ahjo.2025.100543.
  5. Hutchings J, Mai E, Blay SP, Ballinger C, Riley RF. Incorporating an enhanced radiation protection device into the treatment of ST elevation myocardial infarctions: a single center retrospective analysis. Am Heart J Plus. 2026;68:100816. doi:10.1016/j.ahjo.2026.100816.
  6. Guddeti RR, Schmidt CW, Riley RF, Kamen J, et al. Evaluating standard shielding versus novel enhanced radiation protection devices in the cardiac catheterization laboratory. J Am Heart Assoc. Published online 10 October 2026. doi:10.1161/JAHA.126.050577.
